Single Hole Mount, Vise Action, Adjustable and Fixed

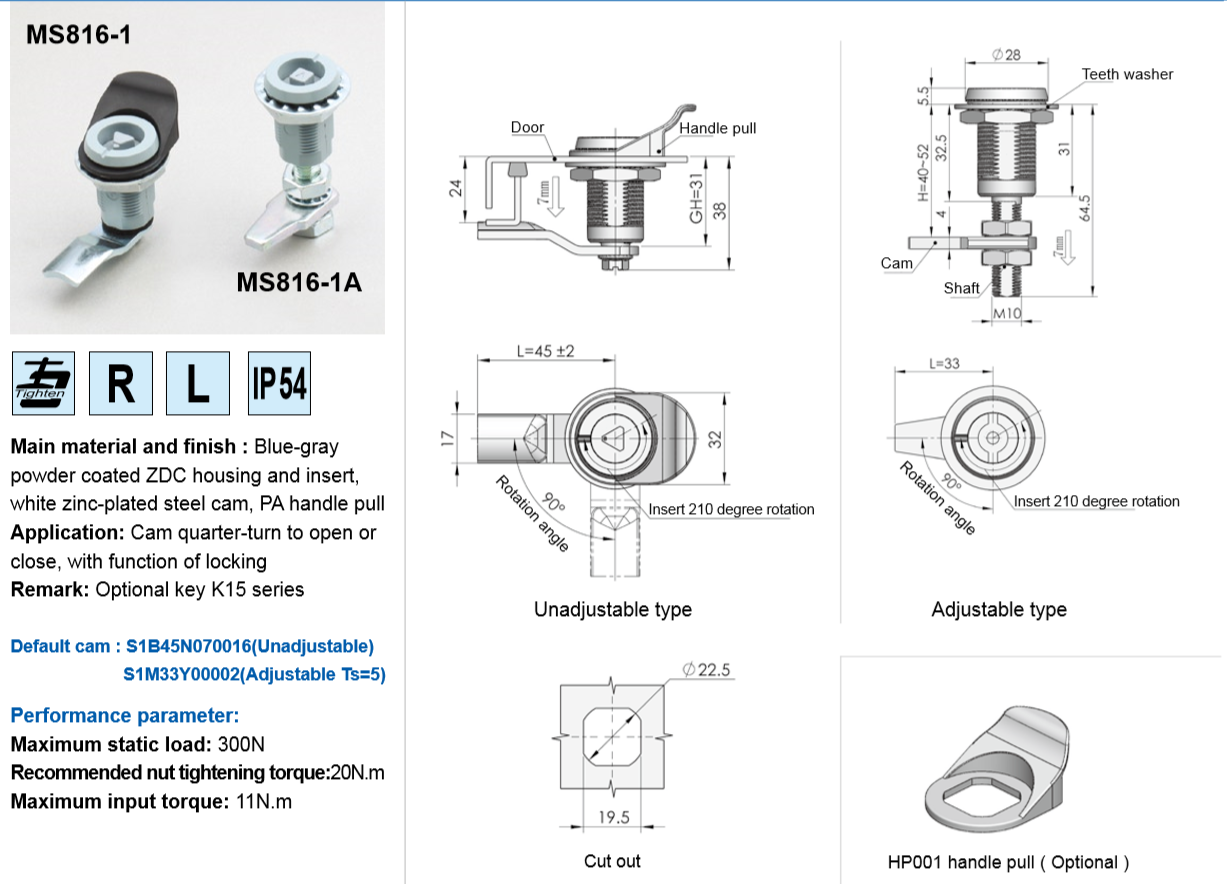

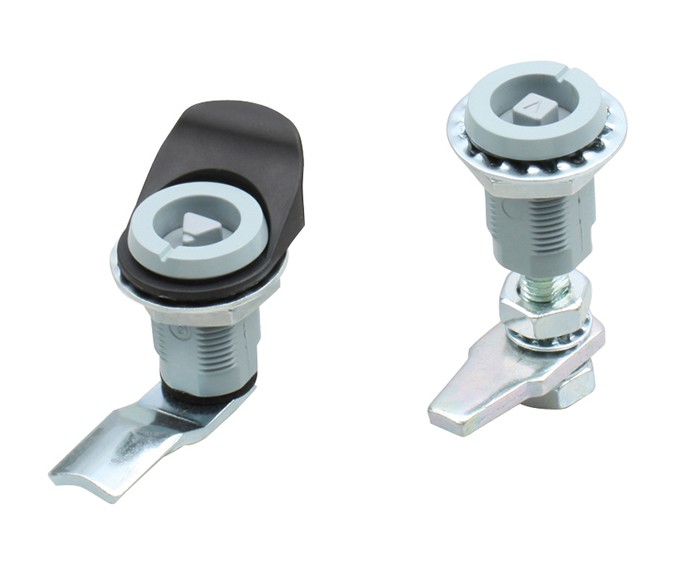

• MS816-1A-W-X-BH, Large Low Profile Head Style, Adjustable

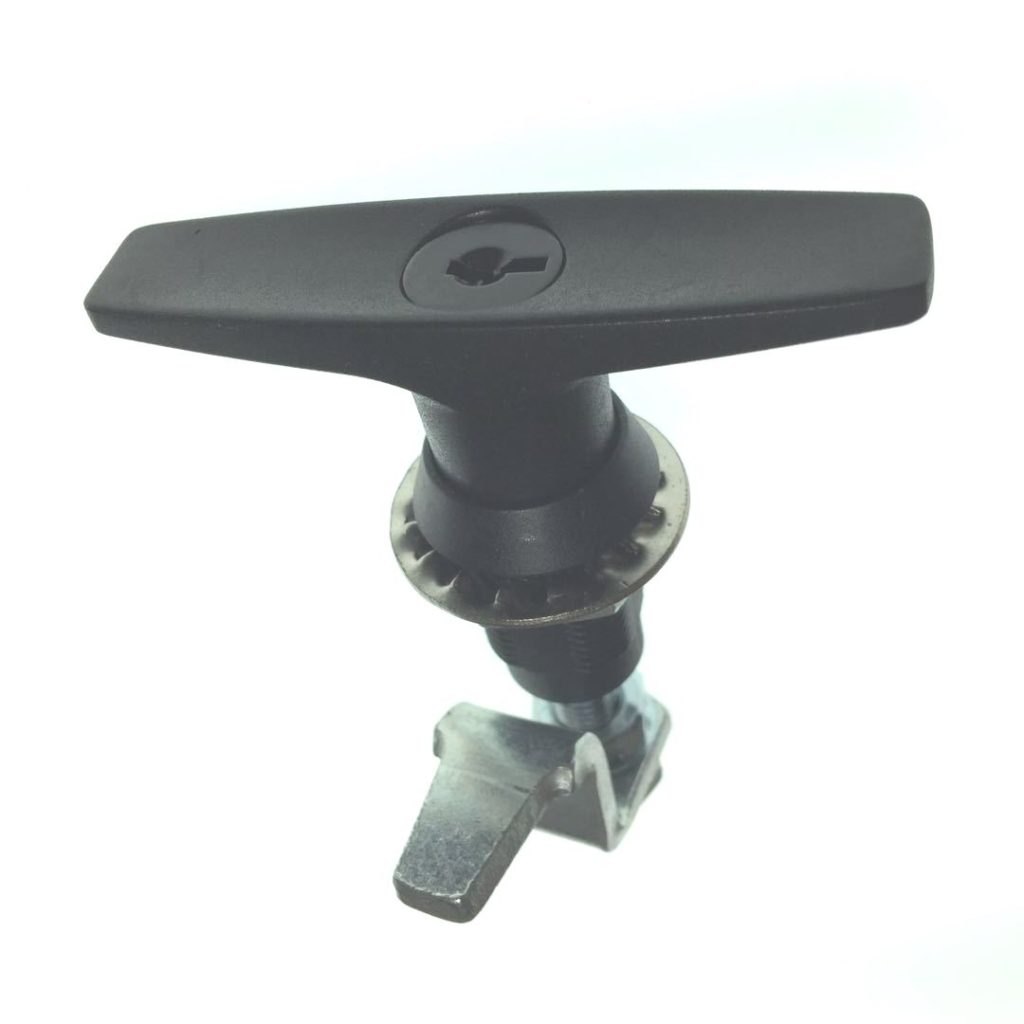

• MS816-1E-W-X-BH, Large T Handle Head Style, Adjustable

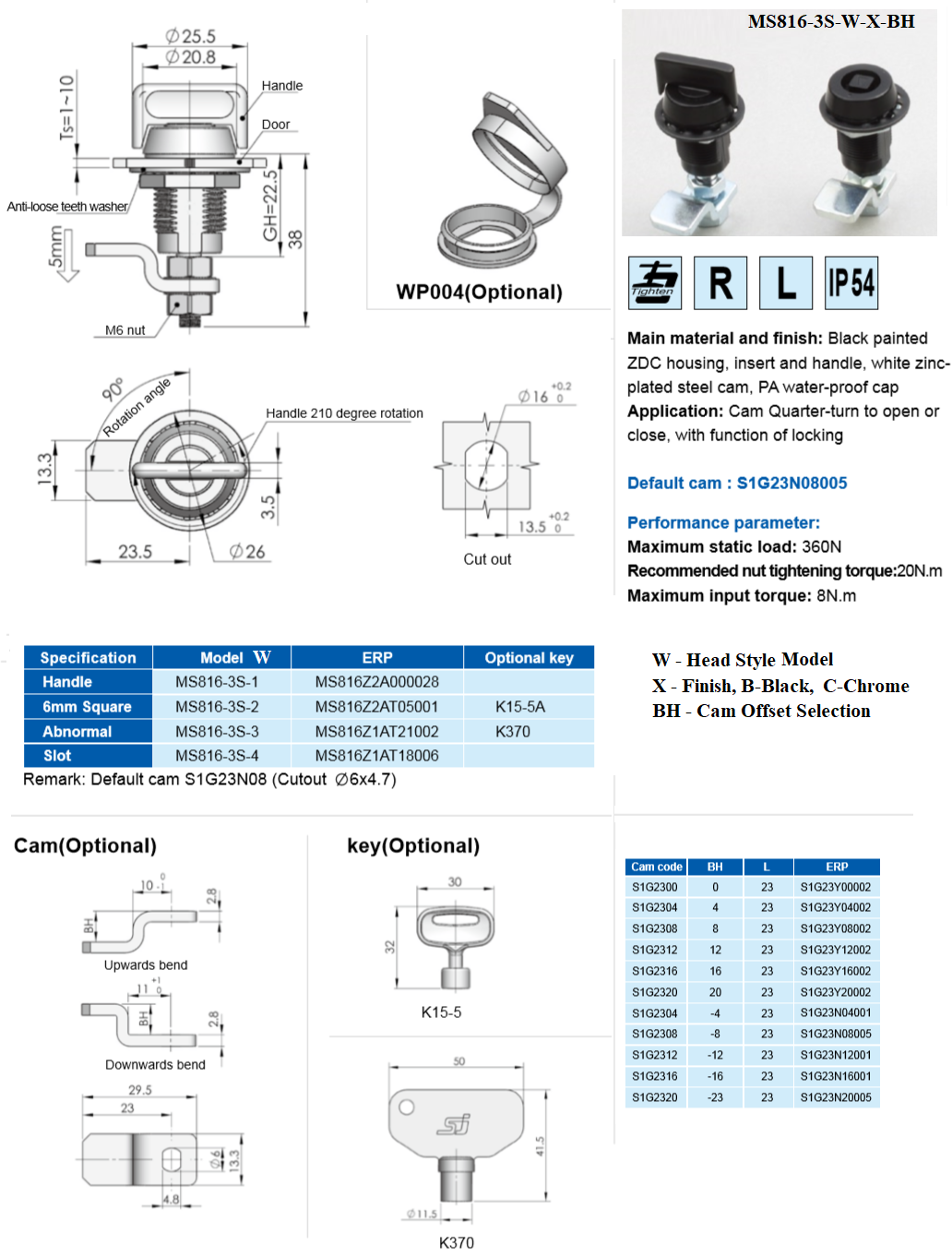

• MS816-3S-W-X-BH, Small Low Profile Head Style, Adjustable
• MS816-1-W-X-BH, Fixed Grip Range
• MS817-X-BH, Fixed Grip Range

W – Head Style, X – Finish (B = Black, C = Chrome)
BH – Cam Offset Choice For Grip Range

Flush Handle, Lift To Turn, Adjustable and Fixed Latches

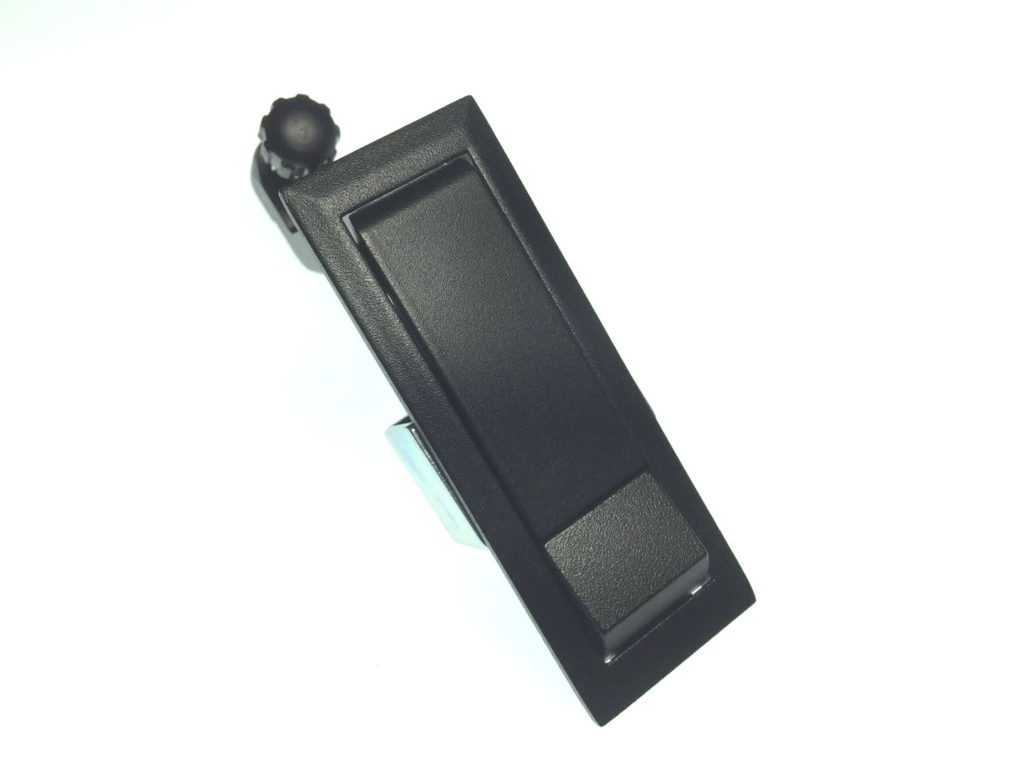

• MS708-X-H   Small Size Handle, H – Grip Range (See Drawing)
• MS718-3-X-H Large Size Handle, Non locking H = 1, 2
• MS718-3B-H Large Size Handle, Locking , H = 1, 2,

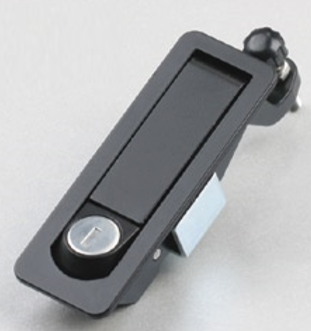

• MS719-HW-X W- Style, C – Locking, CA – Non Locking
  X – Finish, B – Black, C – Chrome
  H – Gtip Range, 1 = 29, 2 = 50 mm

• MS726-W-X, Flush Style Handle, Middle Size
  MS726-1-X-BH Non Locking
  MS726-1A-X-BH Tool Locking

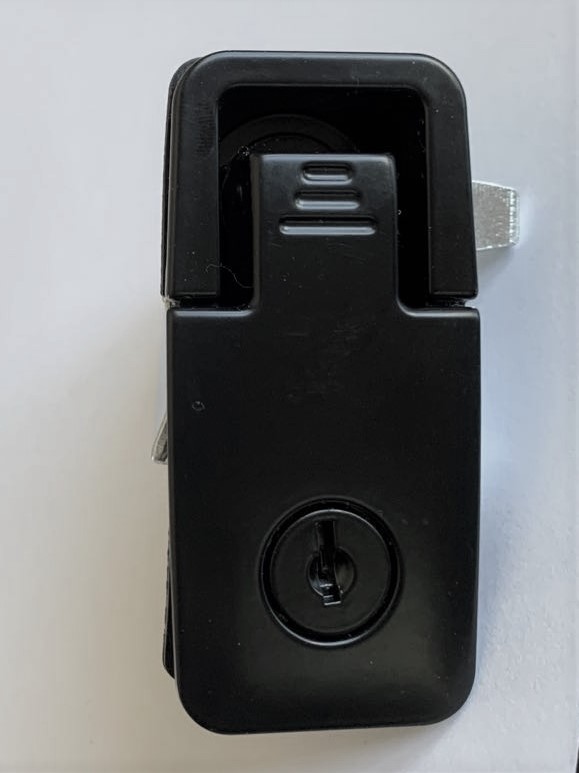

  MS726-1L-X-BH Key Locking CH 751
• MS726-3-X-BH Flush Style Handle, Small Size
  W – Style, 1 = Non Locking, 1A – Tool Locking, 1L – Key Locking
  X – Finish, B-Black, C-Chrome

• MS85X-W Large T handle Flush Cup Style, Stainless Steel
  MS856-W Rod Option Deeper Cup Style
  MS857-W Fixed Cam Style
  MS858-W Adjustable Cam
  X – Style, 5, 6, 7
  W – Cup Style, 1=Hole Type Cup, 2=Screw Bolt Type Cup

For Additional Information or Questions, Please Contact Customer Service
At [email protected]
